Hydraulic Cylinders

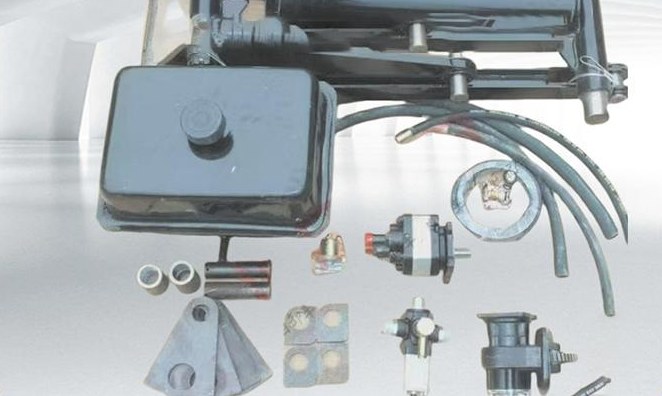

Horizontal rear-tipping cylinder kit
Model WT-HZ
A complete horizontal rear-tipping set: cylinder, reservoir, valve, hoses and mounting parts…
View detailsHydraulics for tippers, trailers and tankers
Complete hydraulic systems for dump trucks and tipper trailers
Lift cylinders, gear pumps, multi-way valves, power take-offs and fittings — supplied as one matched system. We build to your chassis, your tonnage and your working conditions, then ship the whole kit in one order.
- Since 1998 Team experience in tipper hydraulics
- One supplier Cylinder, pump, valve and fittings from a single source
- Built to fit Mounting and stroke matched to the vehicle
2,200 m²
Facility in Zhumadian, Henan
20+
Technicians and hydraulic specialists
2019
Company incorporated in April
Full kit
Lift system parts matched before shipping
Product range
Find the part that fits the vehicle
Every product in the catalogue is a real item from our current range — cylinders, pumps, valves, take-offs, fittings, tanks and chassis hardware for tipper and trailer work.
Hydraulic Cylinders
19 products
Gear Pumps
6 products
Multi-way Valves
10 products
Power Take-Offs (PTO)
16 products
Power Units & Electric Hydraulic Systems
5 products
Hoses, Fittings & Couplings
5 products
Hydraulic Oil Tanks
3 products
Brackets, Pins & Mounts
5 products
Wheels & Rims
6 products
Lubricants & Service Fluids
6 products
Trailer & Chassis Parts
9 products
All products
Browse the full catalogue
One system, one supplier
The lift system works as a set — so we supply it as a set
A tipping system only performs when cylinder, pump, valve and plumbing are matched in flow, pressure and mounting. Instead of sourcing four suppliers, you receive one kit configured for your chassis.
01
Lift cylinder
Front-end, centre-lift, side-tipping, horizontal rear-tipping or multi-stage cylinders, matched to the body and mounting space.
02
Power source
Gear pumps driven through a power take-off, or complete electric-hydraulic power units for bodies without a PTO drive.
03
Control
Multi-way valves with two to six sections, air-controlled and proportional hand-control versions, plus limit valves for end-of-stroke protection.
04
Plumbing and mounting
Tanks, high-pressure hose assemblies, quick couplers, brackets, pins and clamps — ordered together so nothing is missing at installation.
Selected products
Popular components from the range
Hydraulic Cylinders
4TG-110 telescopic front-end cylinder
Model 4TG-110
Four-stage telescopic front-end lift cylinder from the 4TG series, mounted at the front of t…
View details
Hydraulic Cylinders

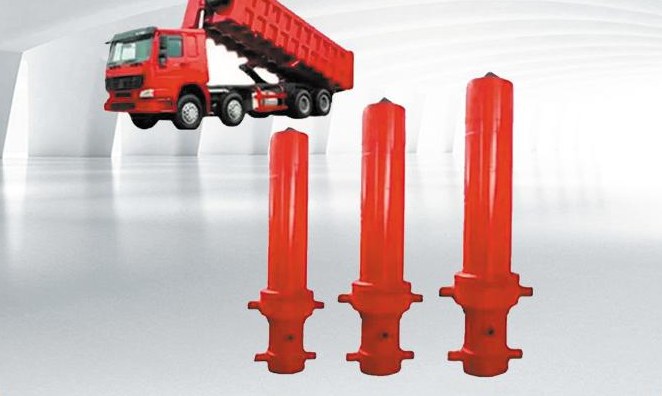

Front-end lift cylinders for tipper trucks
Model FT-SET
Front-end lift cylinders supplied in the configuration used on tipper trucks with an under-b…
View details
Hydraulic Cylinders

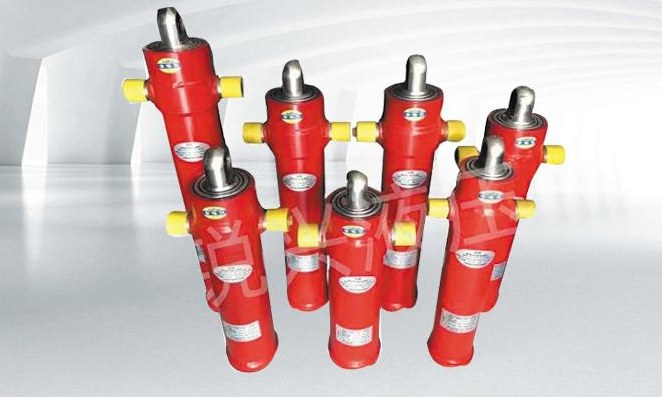

Centre-lift cylinder
Model CL-1
Centre-mounted lift cylinder for tipping bodies, positioned under the middle of the floor.
View details
Gear Pumps

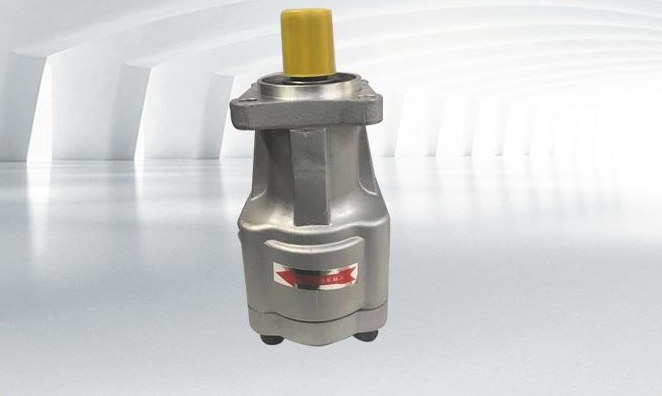

100 side-port gear pump
Model 100
100 size gear pump with side-positioned ports, used where the hose run leaves the pump horiz…
View details
Multi-way Valves

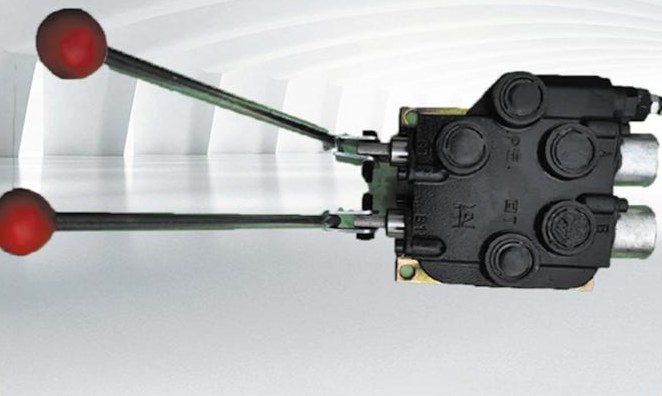

Monoblock multi-way valve
Model MB-1
Monoblock directional valve with lever control for lift, hold and lower functions.
View details
Power Take-Offs (PTO)

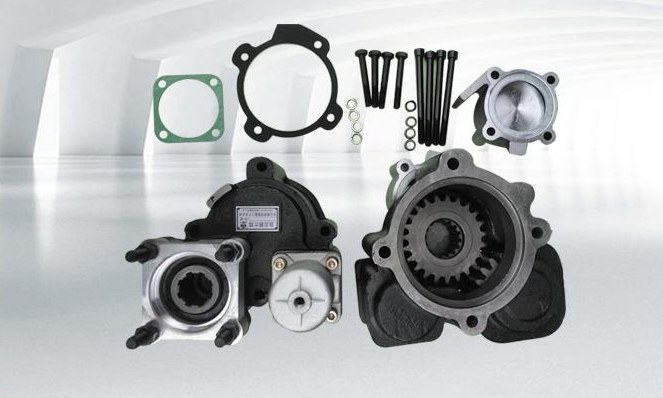

Power take-off for Fast Gear transmissions
Model PTO-FG
Power take-off matched to Fast Gear (Shanxi Fast) transmissions, supplied as an installation…
View details
Power Units & Electric Hydraulic Systems

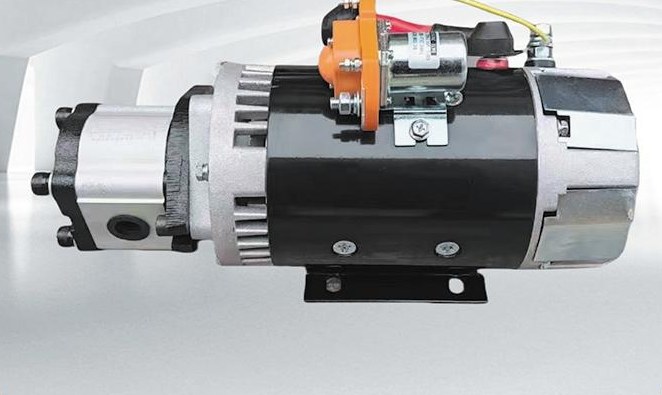

Electric hydraulic power unit
Model EPU-1
Self-contained electric-hydraulic power unit with motor, pump and tank for bodies without a…
View detailsApplications
Where our hydraulics are working
Our cylinders and valves are specified by body builders and trailer manufacturers for the vehicle types below. Tell us the chassis and the payload and we will match the system.
Dump Trucks & Tippers
Front-end telescopic cylinders, centre-lift cylinders, gear pumps, valves and PTOs for rigid tipper trucks and heavy-duty dump bod…
Side-Tipping Trailers
Side-tipping cylinders, multi-way valves and power take-off units for trailers that discharge to the side, including multi-stage a…
Semi-Trailers & Low-Bed Trailers
Hydraulic kits, oil tanks, brackets and running-gear parts for semi-trailers, rear-tipping trailers and low-bed transport trailers…
Tanker & Bulk Transport Vehicles
Power take-off flange kits, pumps and hydraulic components used when tanker and bulk-powder bodies are converted or repaired.
Car Carriers
Long-stroke multi-stage cylinders and deck-lift hydraulics for car-carrier trailers and vehicle-transport equipment.
Manufacturing and quality
Built to survive the tipper cycle
Tipper cylinders work in dust, grit and constant load changes. The details that decide service life are the seal package, the rod surface and the cylinder head — so those are where we concentrate.
- Imported high-grade oil seals for reliable sealing under load.
- Thickened hard-chrome plating on the piston rod for wear resistance.
- One-piece forged cylinder head for higher torsional strength.
- Dust wiper seals to keep abrasive material out of the gland.
How we work
From your chassis details to a working system
Requirements
You send the vehicle type, body dimensions, payload and available mounting space.
Selection and engineering
We specify cylinder, pump, valve and plumbing as one set and confirm the mounting drawing.
Production and assembly
Parts are produced, matched, assembled and checked before packing.
Delivery and support
Export packing, shipping documents and technical support for installation and commissioning.
Send us the vehicle details and get a system proposal
Include the truck or trailer model, body length, rated payload and the lift type you need. Our engineering team will reply with a matched configuration and a price.
